LangGraph Human-in-the-Loop (HITL) workflows enable chatbots to combine automated decision-making with human oversight. These workflows allow AI systems to handle routine queries while routing sensitive, ambiguous, or high-risk interactions to human agents for validation. LangGraph is an open-source framework designed to build, deploy, and manage such structured AI workflows with explicit human approval checkpoints.

By integrating LangGraph with platforms like Chatboq, businesses can automate repetitive customer interactions while ensuring seamless handoffs to live agents. This approach balances efficiency, empathy, and compliance in customer support workflows

• Human-in-the-loop for smarter chatbots

• Smooth AI-to-human handoffs

• Automate routine inquiries efficiently and effectively

• Multi-channel workflow orchestration

• Real-time human approval checkpoints and active learning by AI

• Boost customer empathy and trust

• Chatboq integration for live agents

LangGraph enables Human-in-the-Loop workflows by inserting human approval checkpoints into AI execution paths. These checkpoints pause automation at predefined stages using mechanisms such as interrupt_before or interrupt_after, allowing humans to review or override AI decisions.

LangGraph is particularly useful when AI systems face ambiguity, low confidence, or high-stakes scenarios. It provides structured workflow orchestration that supports human review without disrupting automated processes.

Key Features of LangGraph for HITL

• Workflow orchestration: LangGraph supports multi-step AI pipelines where humans can intervene at any stage when AI confidence is low or decisions are complex.


• Approval checkpoints: Automation pauses until a human validates or rejects the AI-generated action, reducing risk and preventing errors.


• Human review integration: Tasks requiring review are routed to agents with full conversational context through review dashboards.


• Multi-channel triggers: HITL workflows can be applied consistently across web chat, email, WhatsApp, Slack, and other channels.

Common Use Cases

• Sentiment-triggered escalation: Conversations expressing frustration or anger are routed to human agents.

• Confidence-based routing: AI responses below a confidence threshold are sent for human review.

• High-stakes decisions: Loan approvals, medical guidance, or compliance checks require explicit human validation.

Human+AI collaboration reduces error rates while maintaining reliable and empathetic customer interactions.

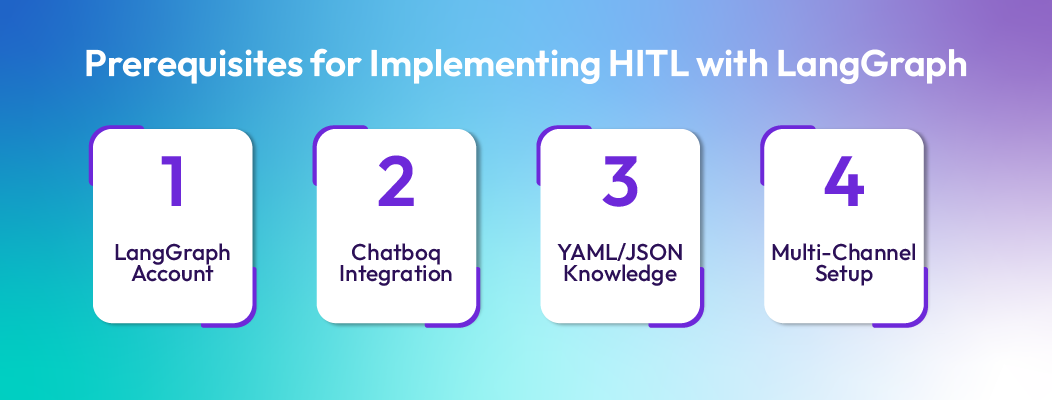

Before implementing HITL workflows, you will need the following prerequisites:

1. LangGraph Account

First, sign up and log in for a LangGraph account and allow workflow orchestration. This provides you access to the tools you need to design and manage HITL workflows.

2. Chatboq Integration

Integrate your chatbot to Chatboq using API or code. Chatboq gives customer-facing chat experiences and comes with HITL-ready APIs so you can easily switch between automation and live human agents.

3. Basic YAML/JSON Knowledge

LangGraph workflows are installed declaratively. Having a basic understanding of YAML or JSON will help you configure and customize your HITL flows.

4. Multi-Channel Setup

Your chatbot should be connected to all the communication channels you plan to use, such as websites, SMS, WhatsApp, or Messenger. This ensures that customers can interact with your bot and human agents wherever they are. HITL systems maintain automation and human oversight, allowing predictive analytics and risk monitoring to involve human judgment when necessary.

Human approval checkpoints act as guardrails in HITL workflows. They ensure critical decisions do not rely solely on automation and instead pause until reviewed by a human agent.

Overview of the Checkpoint Pattern

A checkpoint is a workflow node where AI execution pauses pending human approval. This pattern enables human validation, correction, and feedback collection while preserving automation efficiency.

Examples:

• AI suggests issuing a refund → workflow pauses → human approves or rejects

• AI flags a user as high risk → workflow pauses → human decides next action

Checkpoint patterns enable feedback loops, error prevention, and controlled automation

Configuring LangGraph (YAML Example)

AI models trained with human corrections and HITLK workflows include handoff patterns. You can configure it with this code:

workflow:

 id: refund-approval

  steps:

    - name: analyze_request

      type: llm

      model: gpt-4

      input: user_message

    - name: decision_checkpoint

      type: checkpoint

      approvers: [agent_team]

      context:

        message: "Refund request flagged for approval"

    - name: finalize

      type: action

      service: stripe

      action: issue_refund

      condition: approved

In this workflow, AI execution pauses until an agent in agent_team approves the refund request.

UI/UX for Agents

Agents require efficient review interfaces to operate HITL workflows effectively. Review dashboards provide:

• Prioritized approval tasks

• Full conversation history and user context

• Options to approve, reject, or escalate actions

Clear UI design reduces cognitive load, improves accuracy, and maintains customer experience quality.

Human handoffs are triggered when AI automation reaches confidence limits or detects sensitive situations. HITL ensures live agents intervene at the correct moment.

Trigger Conditions for Human Takeover

• Sentiment analysis: Negative or frustrated user sentiment triggers escalation

• Low-confidence responses: AI confidence below a defined threshold pauses automation

• Keyword flags: Terms like “cancel,” “refund,” or “complaint” trigger human review

Sample Chat Flow

Here is the sample chat flow between the chatbot, user, system, and agent.

{

  "chat_flow": [

    {"bot": "How can I help you today?"},

    {"user": "I want to cancel my account."},

    {"system": "Trigger HITL checkpoint (keyword: cancel)"},

    {"agent": "Hi, I see you’d like to cancel. Can I assist with alternatives?"}

  ]

}

In this chat flow, AI detects the keyword Cancel, pauses the automation, and transfers the chats to human agents who provide personalized responses. You can use Chatboq to enable automated workflows to pause for live agent intervention, ensuring empathy and personalization even in complex interactions. Agents can step in seamlessly, view the customer’s conversation history, and take appropriate action without breaking the flow.

By connecting humans in the loop with active learning, Chatboq enables seamless handoffs by preserving conversation context and allowing agents to take over without disrupting the user experience.

Logging and metrics are essential for evaluating HITL performance, ensuring transparency, and improving AI accuracy.

What to Log

• Number of handoffs: Identifies where AI struggles

• Resolution time: Measures efficiency of human interventions

• CSAT post-intervention: Evaluates customer satisfaction impact

• Human correction rate: Indicates AI reliability and retraining needs

Tooling Ecosystem

• HITL orchestration platforms: Manage routing and logging

• Annotation platforms: Enable retraining with human corrections

• QA dashboards: Monitor trends, KPIs, and anomalies

Metrics validate HITL effectiveness and support continuous optimization.

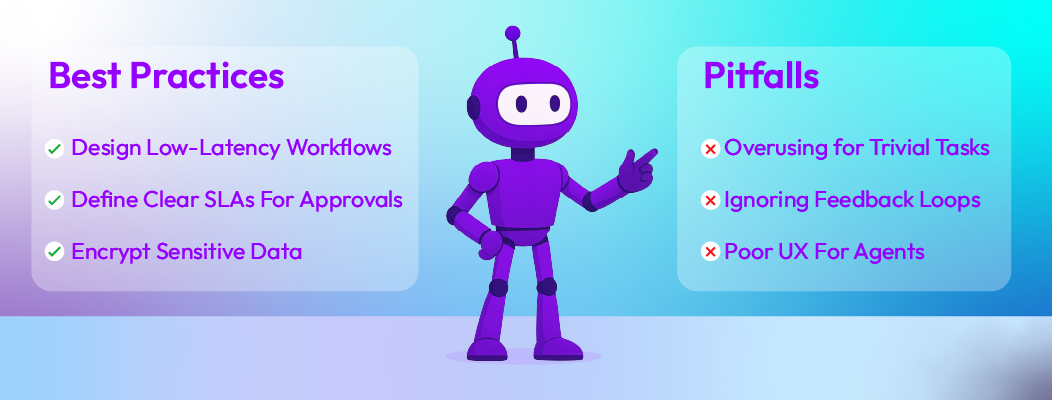

Some best Practices are listed below:

Design low-latency workflows
HITL checkpoints should not slow down the overall customer experience. Approval paths, notifications, and agent dashboards must be optimized so humans can review and act quickly. Long wait times reduce the value of automation and negatively impact customer satisfaction.

Define clear SLAs for approvals
Every human approval step should have a defined Service Level Agreement (SLA). This ensures agents know how quickly they must respond and prevents workflows from stalling. Clear SLAs also help teams measure and improve HITL performance over time.

Batch low-risk approvals
Not all approvals require immediate human attention. Low-risk or repetitive cases can be grouped and reviewed in batches. This reduces agent fatigue and allows humans to focus on high-impact decisions instead of routine validations.

Encrypt sensitive data
HITL workflows often expose humans to customer data. Sensitive information must be encrypted, masked, or access-controlled to ensure privacy and regulatory compliance. Secure handling of data is essential for trust and auditability.

Overusing HITL for trivial tasks
Applying HITL to simple or low-risk actions defeats the purpose of automation. When humans are asked to approve obvious decisions, efficiency drops and agents become overloaded. HITL should be reserved for ambiguity, risk, or policy-sensitive scenarios.

Ignoring feedback loops
Human corrections are valuable training signals. Failing to log and reuse these corrections prevents AI systems from improving. Without feedback loops, the same errors repeat, increasing unnecessary human intervention.

Poor agent UX design
If approval dashboards lack context, history, or clarity, agents make slower or incorrect decisions. Poor UX increases cognitive load and reduces the effectiveness of HITL. Agents must see the full conversation, AI reasoning, and available actions in one place.

Why Chatboq + LangGraph Works Well

LangGraph provides structured checkpoints and workflow control, while Chatboq enables seamless live-agent handoffs with full conversation context. Together, they ensure that routine interactions remain automated, and humans intervene only when necessary, improving efficiency, accuracy, and customer trust.

Debug execution using workflow logs
Workflow logs help identify where AI decisions pause, fail, or escalate to humans. Reviewing logs makes it easier to trace errors, bottlenecks, and misconfigured checkpoints.

Monitor AI model drift
AI model drift occurs when prediction accuracy degrades over time due to changing user behavior or data patterns. Regular monitoring ensures the AI remains reliable and intervention thresholds stay effective.

Optimize handoff thresholds
Handoff thresholds control when AI transfers tasks to humans. Tuning confidence scores and trigger rules reduces unnecessary escalations while ensuring humans handle high-risk or ambiguous cases.

Retrain models using human correction data
Human corrections provide high-quality training signals. Feeding this data back into model retraining improves future accuracy and gradually reduces the need for manual intervention.

You can use this starter YAML template to kick off your HITL chatbot, which includes audit logging, checkpoint logic, and Chatboq handoff triggers.

YAML Workflow Example

workflow:

  name: HITL_Customer_Support

  description: Human-in-the-loop workflow for validating AI responses in customer support.

  version: 1.0

  triggers:

    - event: "new_customer_query"

  steps:

    - id: ai_response

      type: ai_task

      description: "AI generates an initial response to the customer query."

      model: "chatbot-v1"

      output: "ai_answer"

    - id: confidence_check

      type: condition

      description: "Check AI confidence score."

      condition: "ai_answer.confidence < 0.8"

      true_next: human_review

      false_next: deliver_response

    - id: human_review

      type: human_task

      description: "Human annotator reviews AI answer and provides corrections if needed."

      assignee: "human_annotator"

      output: "final_answer"

      log_metrics:

        - handoff_count

        - correction_rate

        - resolution_time

    - id: deliver_response

      type: action

      description: "Send final response to customer."

      input: "final_answer or ai_answer"

  logging:

    enable: true

    metrics:

      - handoff_count

      - resolution_time

      - correction_rate

      - CSAT_score

How to Use the YAML Template

• Modify the confidence threshold to control when human review is required

• Replace the AI model or task logic with your own implementation

• Connect the human_review step to a live-agent system such as Chatboq

• Extend the logged metrics to include SLAs, channel data, or agent identifiers

JSON Workflow Example

The JSON example below mirrors the same HITL logic in a programmatic format, making it suitable for API-driven platforms or dynamic workflow generation.

{

  "workflow": {

    "name": "HITL_Customer_Support",

    "description": "Human-in-the-loop workflow for validating AI responses in customer support.",

    "version": "1.0",

    "triggers": [

      { "event": "new_customer_query" }

    ],

    "steps": [

      {

        "id": "ai_response",

        "type": "ai_task",

        "description": "AI generates an initial response to the customer query.",

        "model": "chatbot-v1",

        "output": "ai_answer"

      },

      {

        "id": "confidence_check",

        "type": "condition",

        "description": "Check AI confidence score.",

        "condition": "ai_answer.confidence < 0.8",

        "true_next": "human_review",

        "false_next": "deliver_response"

      },

      {

        "id": "human_review",

        "type": "human_task",

        "description": "Human annotator reviews AI answer and provides corrections if needed.",

        "assignee": "human_annotator",

        "output": "final_answer",

        "log_metrics": [

          "handoff_count",

          "correction_rate",

          "resolution_time"

        ]

      },

      {

        "id": "deliver_response",

        "type": "action",

        "description": "Send final response to customer.",

        "input": "final_answer or ai_answer"

      }

    ],

    "logging": {

      "enable": true,

      "metrics": [

        "handoff_count",

        "resolution_time",

        "correction_rate",

        "CSAT_score"

      ]

    }

  }

}

When to Use the JSON Template

• When workflows are created or modified dynamically

• When integrating HITL logic into existing backend services

• When deploying HITL pipelines through APIs or orchestration platforms

Human-in-the-loop workflows combine automation with human judgment to deliver reliable, empathetic chatbot interactions. LangGraph enables structured approval checkpoints, escalation paths, and auditability, while Chatboq provides seamless live-agent handoffs. Together, they allow businesses to automate routine workflows while ensuring human oversight where it matters most.
